Sometimes real precision is required with pitch control voltages - this module features a super accurate "Cal" output, which is accurate to <1mV over 20V, translates to one cent over 20 octaves! It is ideal for calibrating the scaling of VCO's, indeed we have been using our own version of this circuit to calibrate our own MiniMod VCO's for the last three years.

As well as being a precision voltage source it is also a very accurate voltage adder, it has two channels (A & B) and both full volts (octaves) or 1/12th volt increments (notes) can be either added to or subtracted from the incoming signal. Perfect for adding a voltage offset to the output of a sequencer or it can be used to add switchable octaves to a VCO which only has course and fine tunes controls.

It also has a "mix" output, which allows either A channel on its own, or with the three way toggle switch channel B can either be added to, or subtracted from channel B, and this is in addition to the addition and subtraction per channel mentioned earlier..

Dimensions: 10HP wide, 26mm Deep

This 14HP wide module is a voltage controlled noise based oscillator, or noisillator for short. It generates 1/f noise and this is then sent through a feedback loop which allows the noise to be "tuned" to varying degrees depending on the settings of the frequency and resonance controls, or incoming frequency or resonance CV's. The tuned circuit can be FM modulated too, for some thunderous sweeping sounds. We have bright and dark outputs, which are pre and post filter respectively. The Bright output will always have a degree of noise present in the signal, whereas the Dark output can be tuned noise only when 4 pole resonance is selected. We also have an external Sync input, which will reset the resonant waveform, and we also have an Audio input, so that an external signal can be mixed into the resonant loop. Combinations of external waveforms to these two inputs can create some massive drone sounds, or sweeping sync sounds.

There is also an XOR ring modulator, which can be used as a module in its own right too. Lastly, we have an XOR amplifier, which is another independant circuit that can be used to add noise and distortion to any audio signal.

Dimension: 14HP wide, 26mm Deep

Here's a bit of fun for all fans of space missions from the previous century! This module is designed to re-create the ground to space and space to ground transissions from the Apollo era.

To be "Mission Control Houston" the Quindar PTT (push to talk) button adds a short 2,525Hz Qindar tone to the start of the transission, then at the end of the message the PTT button or switch is released and a short 2,475Hz Quindar tone is added to the audio. The bandwidth is slightly reduced in this mode.

For "Astronaut comms" we press the Capsule PTT switch, which allows us to add coloured noise, distortion, bandwidth reduction and either hum or LGM (Little green men space tone) noise to the audio signal. A deep space electret condenser mic is supplied and an be used with the MIC input.

Obviously the Lunar Module can also be used to add noise, hum, distortion, bandwidth reduction and LGM noise tone to any modular level audio too, and if the mic is left attached theremin like sounds can be added too with careful loudspeaker feedback.

Dimensions: 6HP wide, 26mm Deep

 Superbooth 19

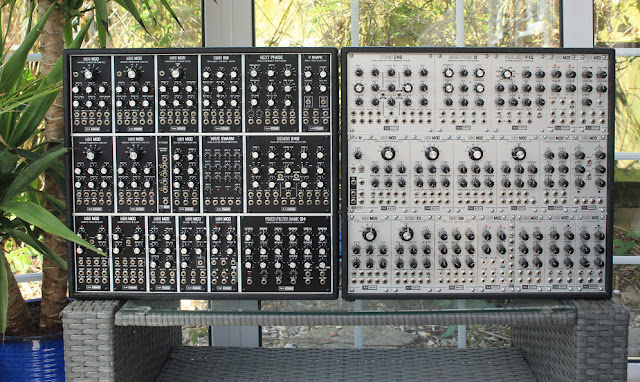

If you are visiting Superbooth 19 at FEZ Berlin on 9th to 11th May then do drop by our booth to say hello and try out all of the AJHSynth range. We are at booth E150, in the main foyer right next to the entrance. Here's some pix of the racks we will have on our stand.
