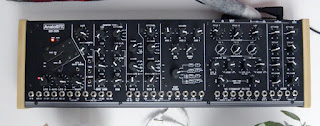

AnalogFX SER-2020 Inspired on the Synton Syrinx *(1) synthesizer is now in eurorack version .


AnalogFX SER-2020 synthesizer is now in eurorack version .

The SER-2020 is a monophonic semi-modular analog synthesizer with a formant filter section, designed to use as standalone synthesizer or in combination with Eurorack modules. Inspired on the Synton Syrinx *(1) added the flexibility with a patch-bay. Its filter design features a combination of a 24dB/octave VC Low Pass Filter, and two independent Resonant VC Peak Filters for precise and dynamic sound shaping. The sound is ranging from solid bass sounds to articulated formant effects. Other features on the SER-2020 are the Touch ‘N Bend Control and together with the MPE (MIDI Polyphonic Expression) capabilities makes the SER-2020 a special instrument which response to its player. The flexible routing makes the SER-2020 a versatile machine for sound effects.

Key Specifications:

2 VCO’s (CEM3340 based)

1 Sub-Oscillator

Ring Modulator

Noise Generator

Audio Mixer

Multi-Mode Sync & Sync D-Tune

3 VCF’s (CEM3350 based)

2 ADSR’s

2 LFO’s with Reset & Shaper Modes


Multiple Triggering

Touch ‘N Bend Pad with Bend Assign

Sample and Hold

Semi Modular Setup – CV inputs and outputs

Signal and Headphone output.

MIDI interface

USB MIDI interface

MPE compatible – Sensitive for; Strike (note-on velocity), Press (aftertouch), Glide (pitch bend), Slide (brightness) and Lift (note-of velocity).

Price ; €975,01

Designed By Blokotek
